HOYUN Miter Saw For 45 Dsgree Cutting Machine

Fully Fully automatic CNC three-blade cutting machine is a classic model developed and upgraded in the past few years in-depth practical experience in ceramic processing plants. The models are mainly includes three conventional models: 1200 type and 1800 type and 2400 type. The machine adopts oil-immersed screw ruler, which improves the accuracy and lifespan of the ruler by 2-3 times. The cutting spindle adopts international brand bearing manufacturers, the machine has a digital screen, just need to enter the size to be cut on the screen, It can quickly set the cutting size. Easy to operate and hashas a high degree of automation. It is one of the indispensable classic models in tile processing plants. The best choice of tile/porcelain slab processing plants.

Send Inquiry

Description

HOYUN Miter Saw For 45 Dsgree Cutting Video

Our Advantage

Oil -immersed linear guide rail, 6 fixed bases
The oil -immersed rail is more durable and the accuracy is higher. 6 fixed bases are installed at the connection between the knife head and the guide rail to ensure stability and durability.

Double exhaust pressure plate
The longest can be processed 3200mm plate, and the narrowest can be processed 35mm plate.

Pneumatic lifting gear
Automatic lifting, more convenient for manual operation, and ensuring accuracy, no size.

Servo motor
Precisely control the cutting length, intelligent operation.

Large capacity suction cup
The knife head is automatically lifted and lifts the structure. When the chamfering reaches the specified position, the cutting knife and mill wheel will rise in order.

Installation in the cut knife
The machine can choose to process from left to right or from right to left.

Related Straight/Curved/Bevel/Miter Cut Out

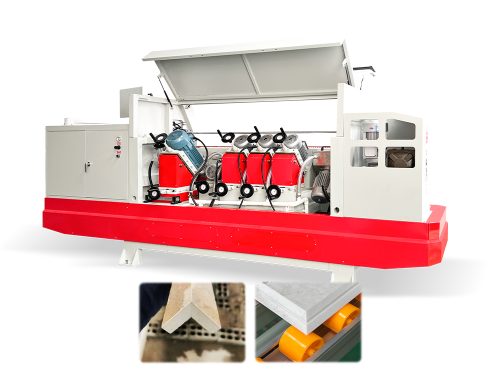

More Images

Bevel Machine Parameters

Mode	Cutting power	Edging motor power	Processing thickness	Weight
4G-3200	4.0KW	3.0KW /set	5.5-30mm	2800KG
4G-3600	4.0KW	3.0KW /set	5.5-30mm	3500KG
Mode	Diameter of blade	Diameter of edging wheel	Processing speed	Auxiliary rack
4G-3200	300*60mm	200*60mm	1.5m/min	600mm3pc 1500600mm*3pc
4G-3600	300*60mm	200*60mm	1.5m/min	600mm3pc 1500600mm*3pc
Mode	Slotting	Slotting motor power	Diameter of slotting blade	Machine size
4G-3200	1	1.5KW	19mm	500014501500mm
4G-3600	1	1.5KW	19mm	550014501500mm
Mode	Grinding wheel	Working size	Total power	Package size
4G-3200	2	25-3200mm	11.5KW	510015501650mm
4G-3600	2	25-3600mm	11.5KW	560015501650mm
