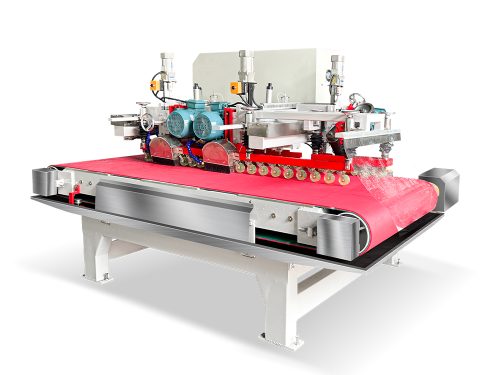

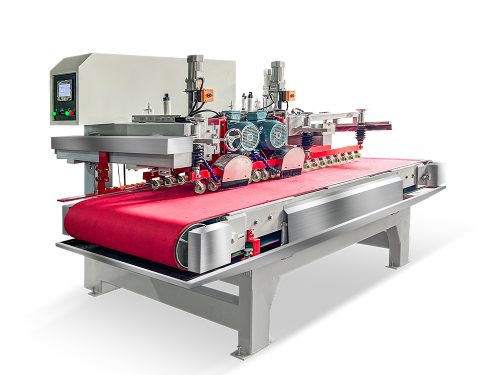

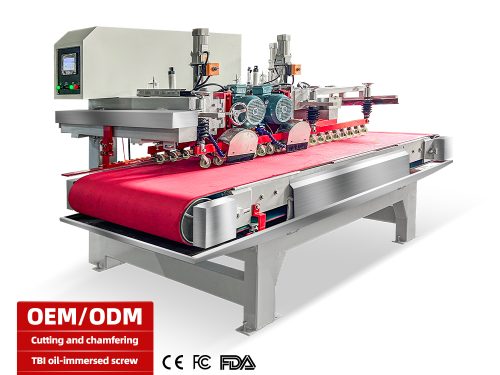

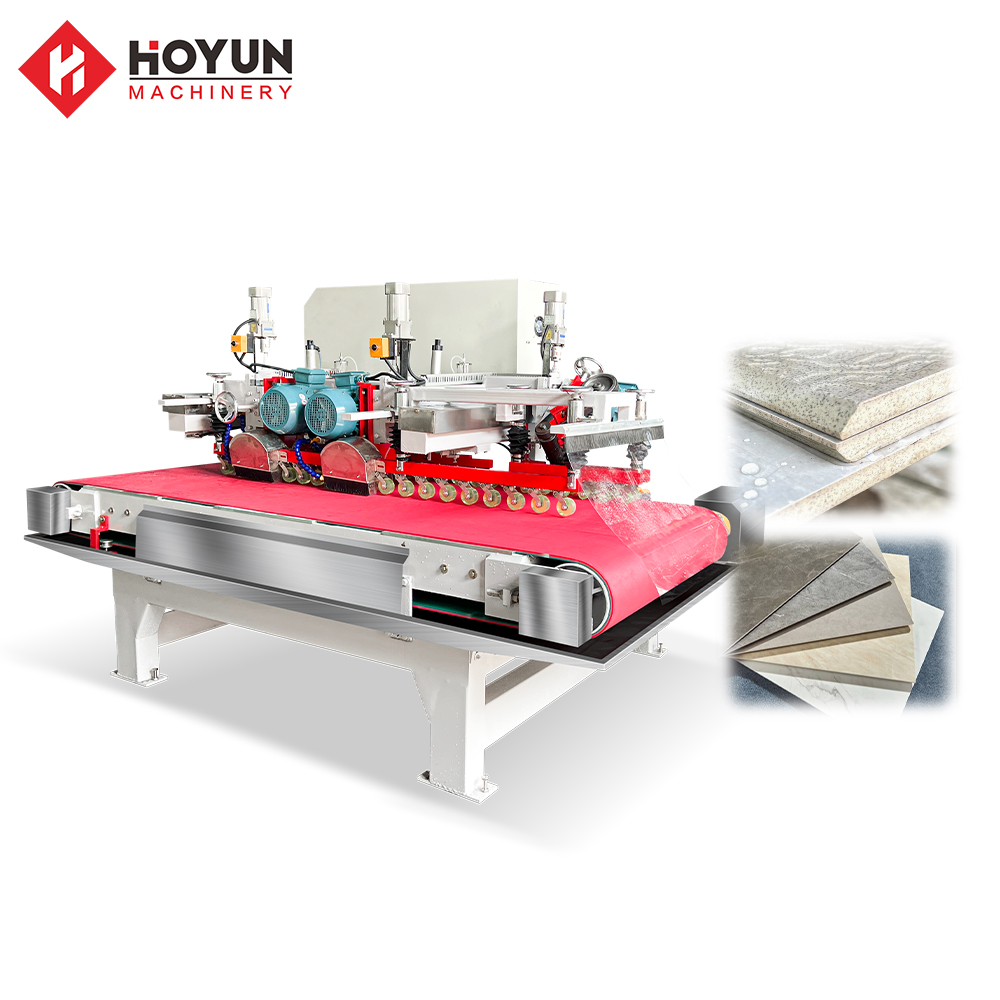

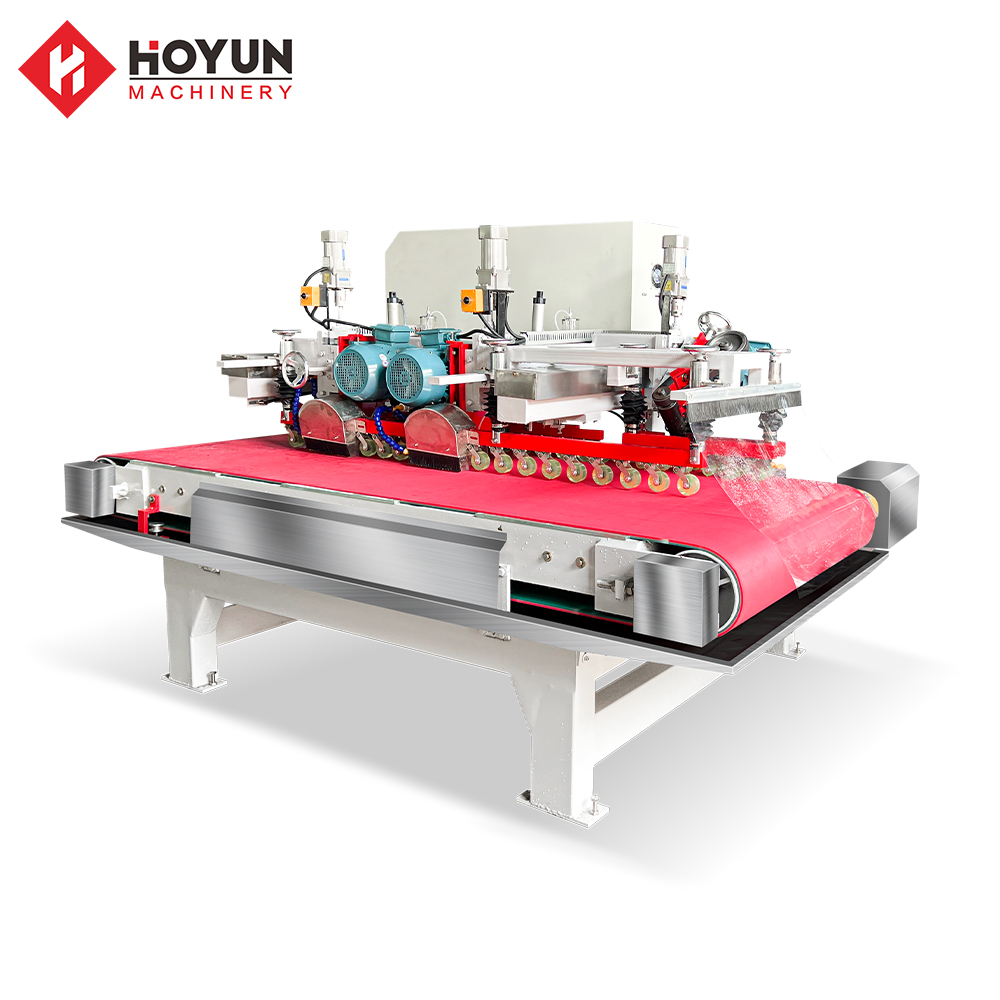

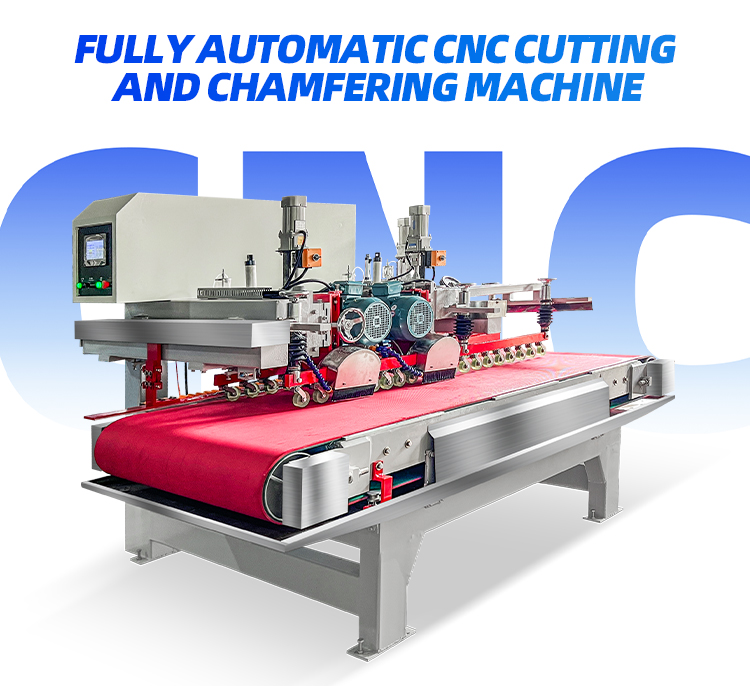

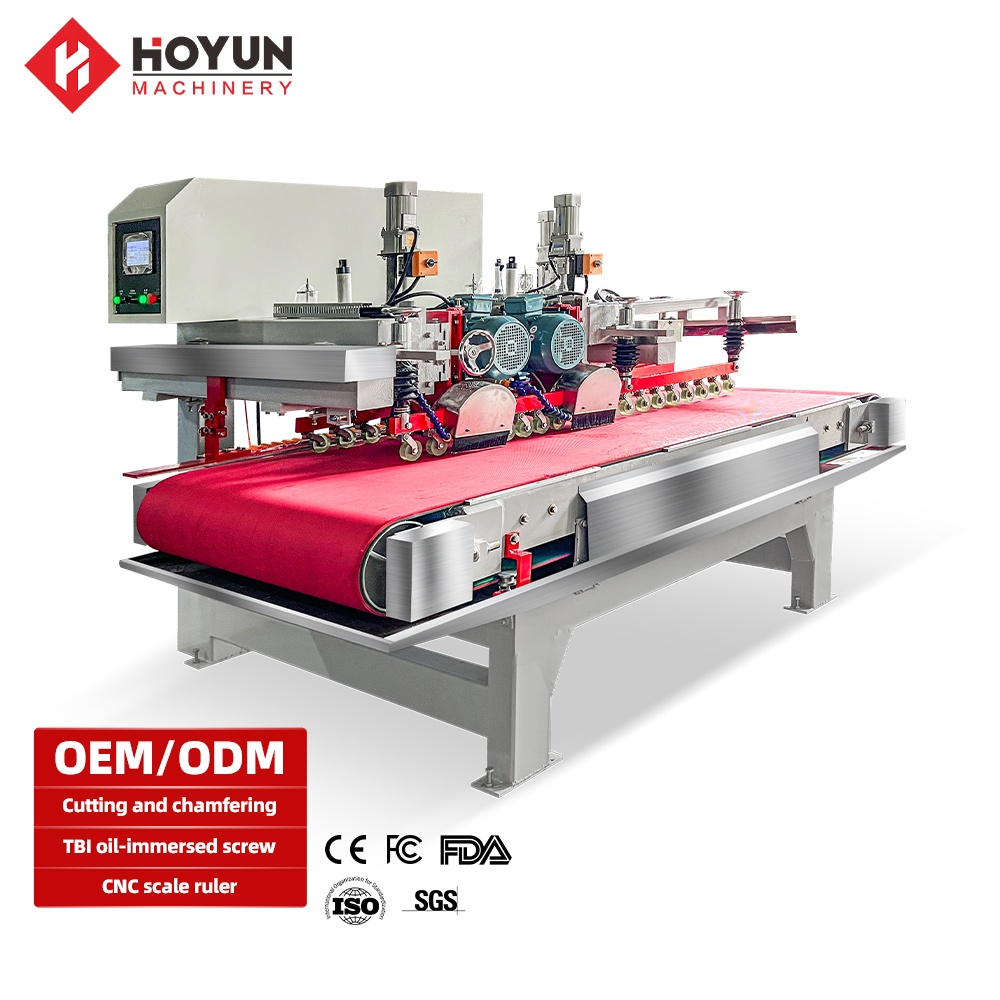

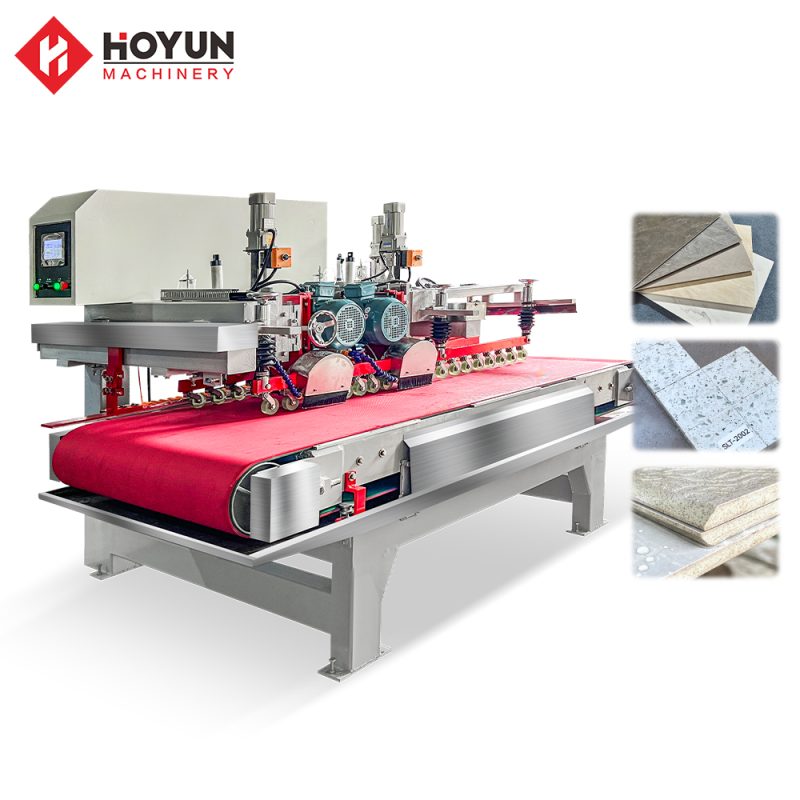

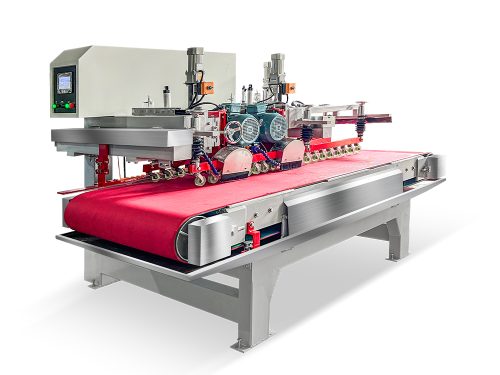

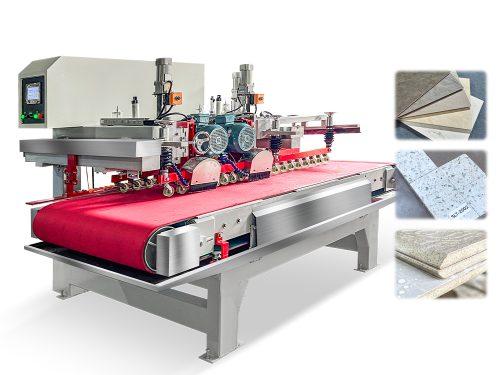

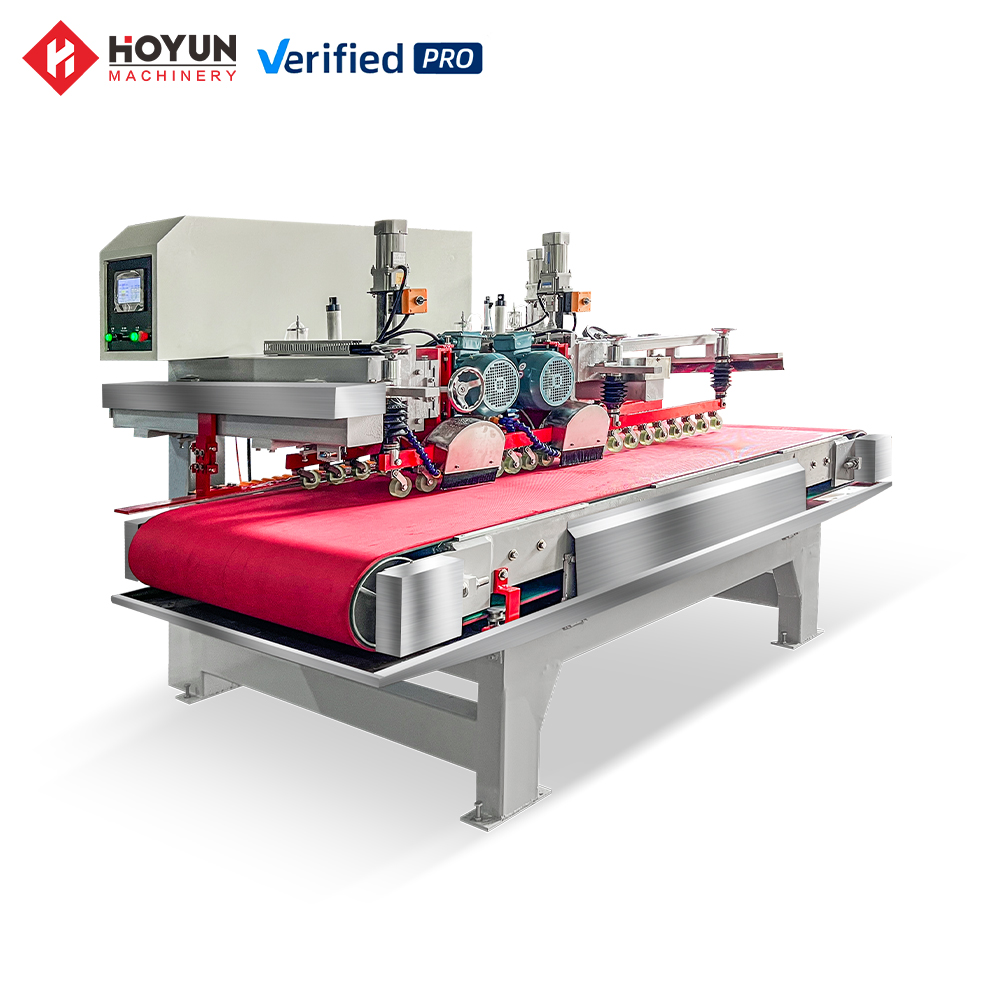

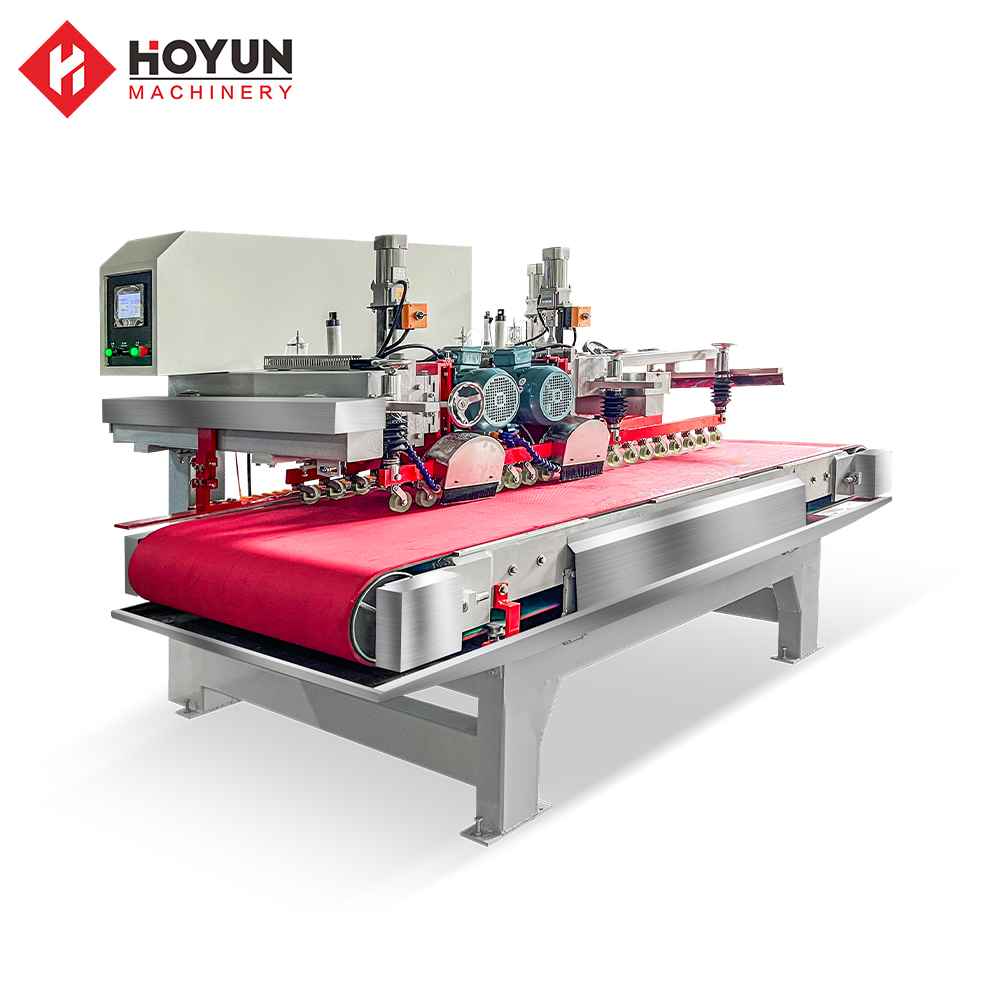

Stone Chamfering Machine
Model |
1200 |
1800 |
2400 |
|---|---|---|---|
Belt width |
800mm | 1000mm | 1200mm |
Cutting speed |
3-5m/min | 3-5m/min | 3-5m/min |
Blade diameter |
120-150mm | 120-150mm | 120-150mm |
Cutting shaft power |
4.0kw | 4.0/5.5kw | 4.0/5.5kw |
Processing width |
10-1200mm | 10-1800mm | 10-2400mm |
Processing thickness |
6-30mm | 6-30mm | 6-30mm |
Water Consumption |
150L/hour | 150L/hour | 150L/hour |
Total power |
13kw | 13kw | 13kw |
Wieght |
1300kg | 1800kg | 2500kg |
Machine size |
2600*2000*1750mm | 2800*2300*1750mm | 3100*2400*1750mm |
Container size |
2700*2100*1900mm | 2900*2100*1900mm | 3200*2550*1900mm |

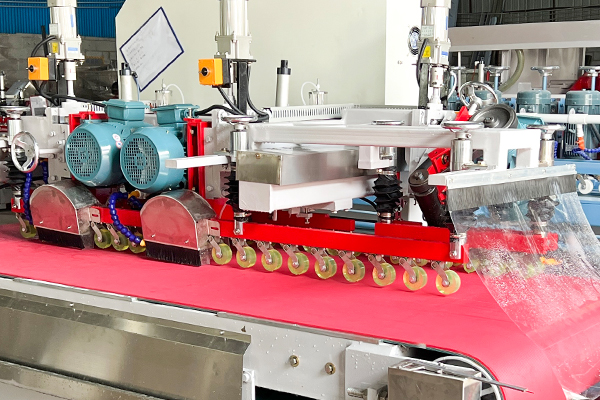

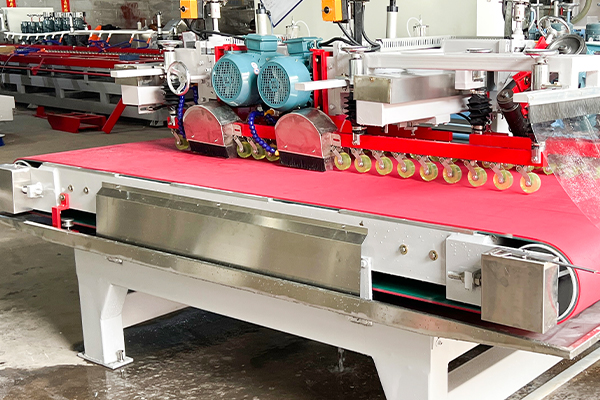

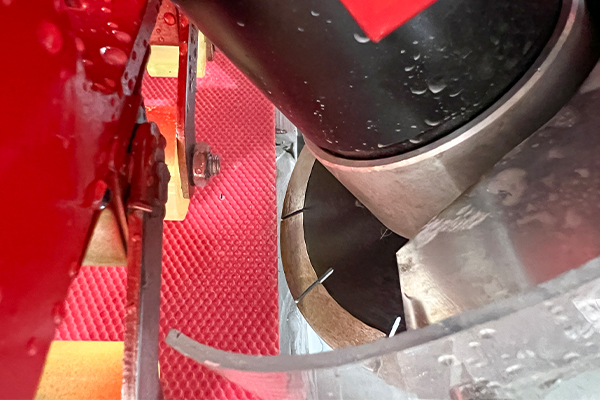

CNC three-blade head
High precision, no chipping or corner dropping, long service life, fast speed, the fastest cutting speed is 7 m/min.

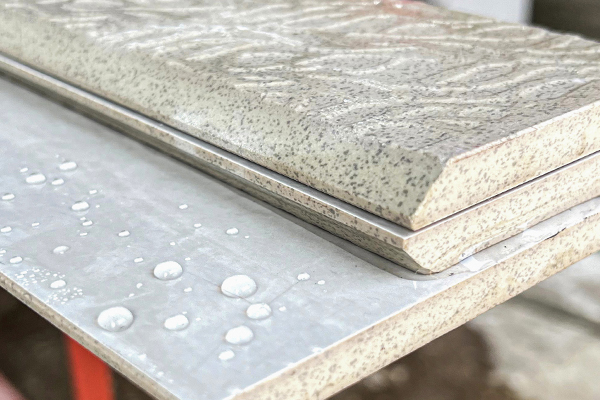

Chamfering structure
The new CNC three-knife cutting machine has upgraded a chamfering structure, which can not only cut straight but also chamfer.

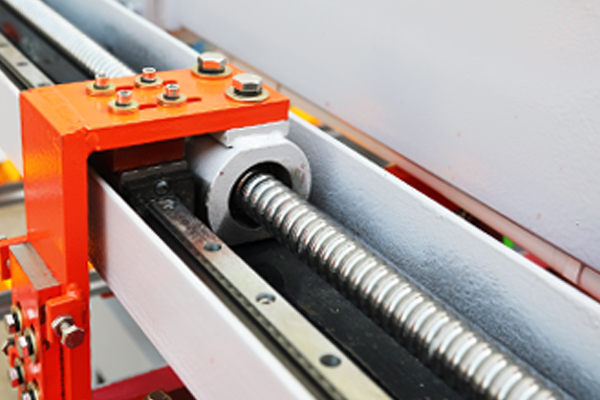

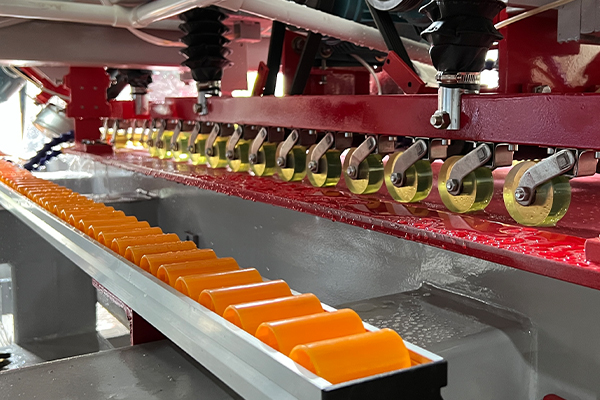

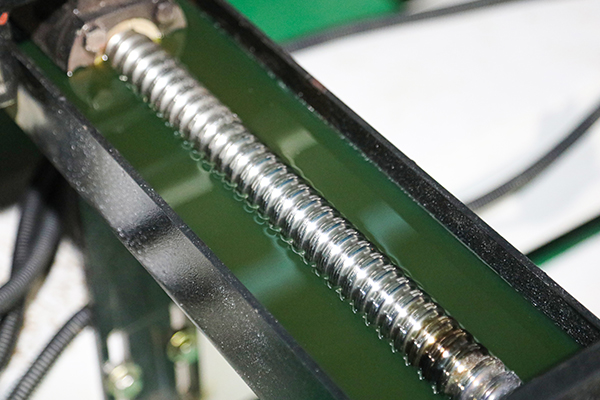

Oil immersed linear guides
The accuracy and life span are improved by 2-3 times, and the cutting error is only ±0.1mm.

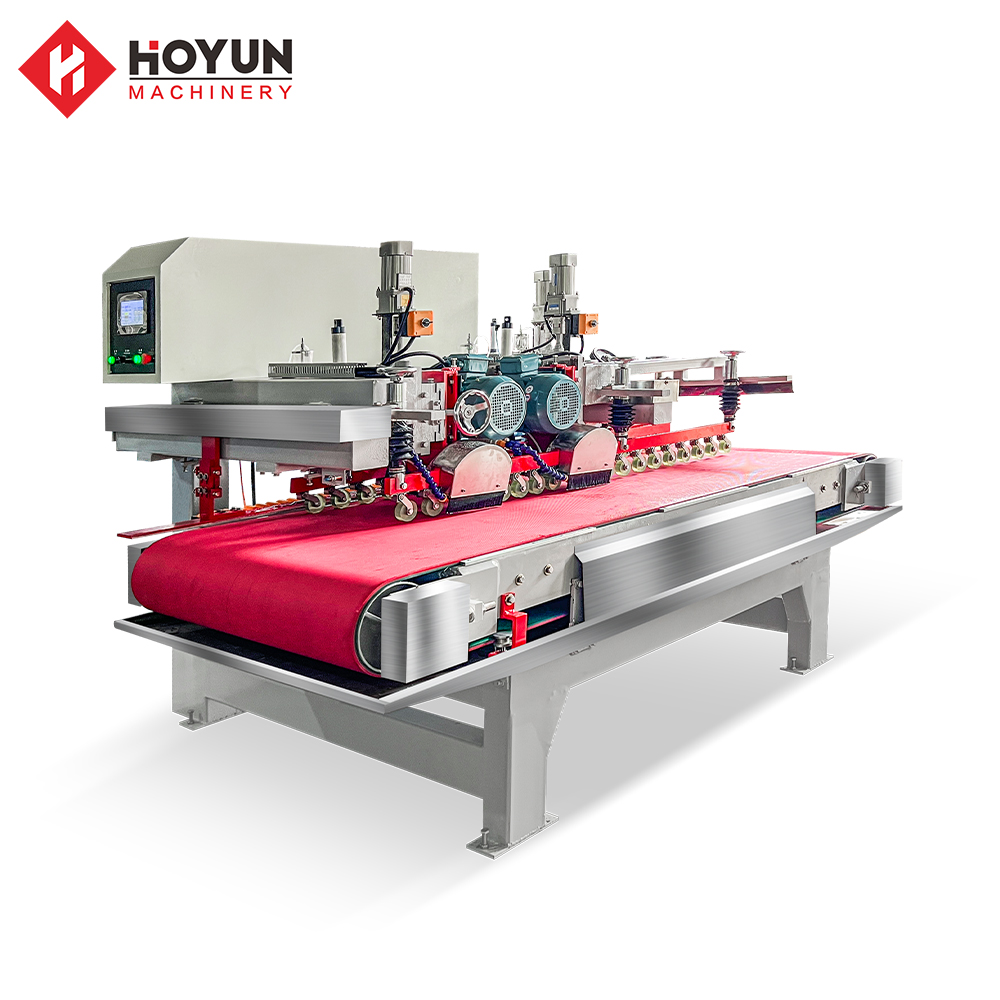

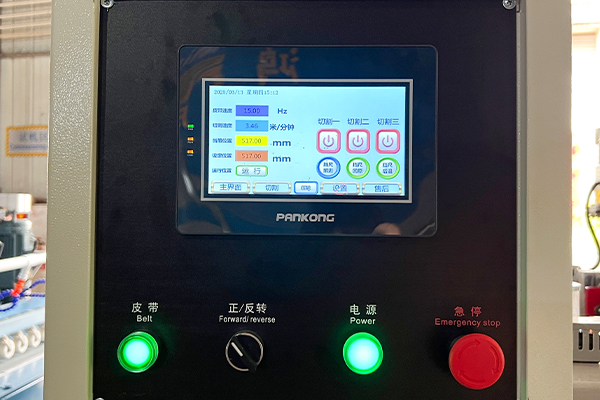

CNC size adjustment
Just input the size on the screen to quickly complete the cutting. It is easy to operate and highly automated.
Adding a water tank and a pump
It makes it a small simplified circulating water pool, which does not need to dig deep on the ground to make a circulating water pool.

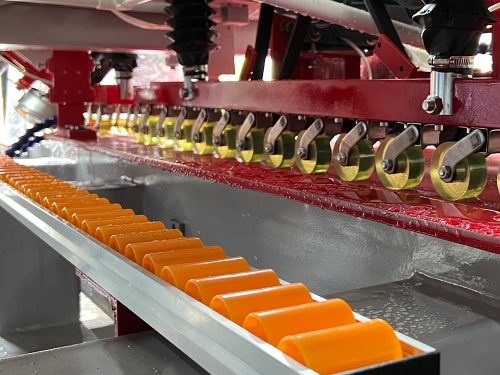

High-precision ruler
Convenient for processing plates of different sizes at the same time, without frequent adjustment of cutting size.

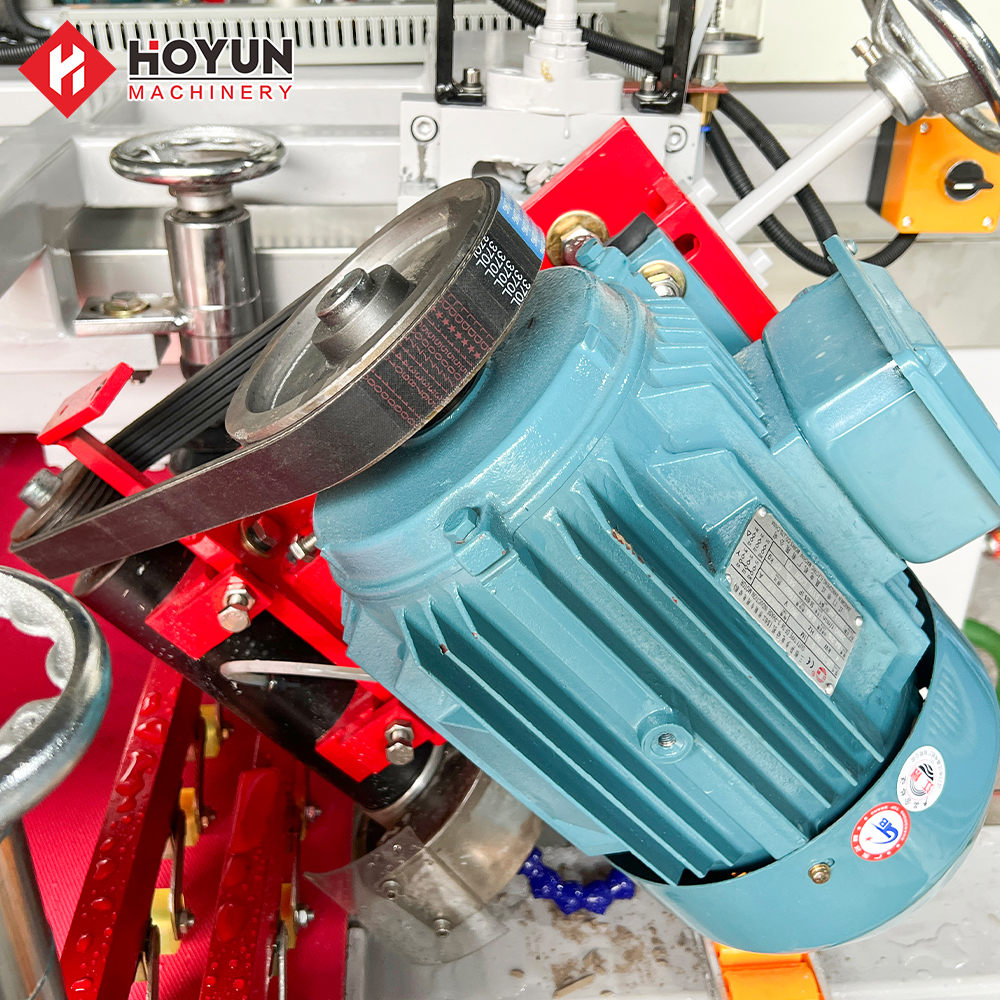

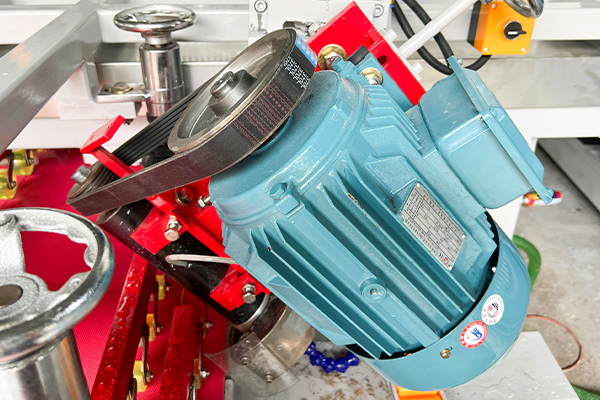

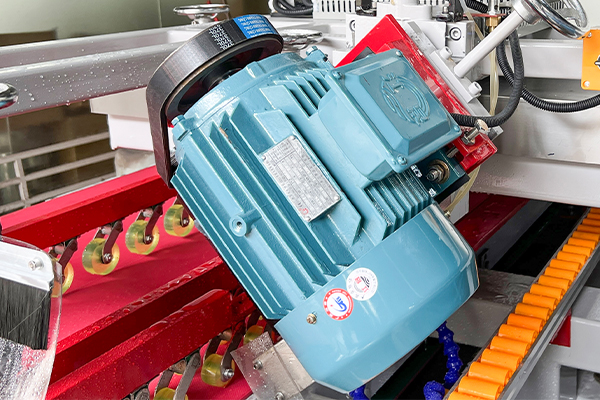

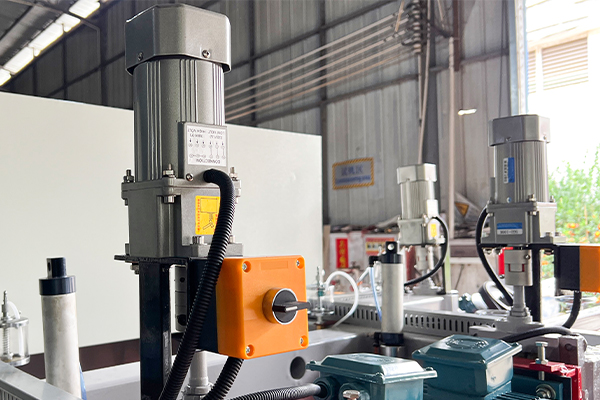

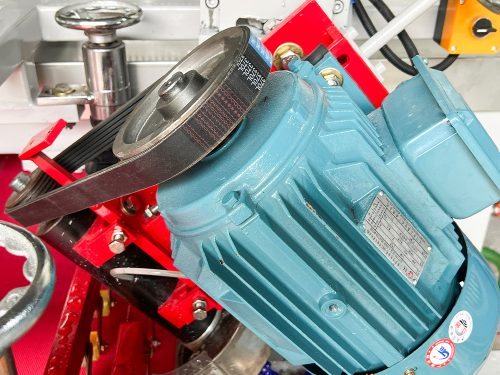

Electric upgrade cutter head
The cutter head can be raised and lowered electrically, making it easy to replace the cutting disc.

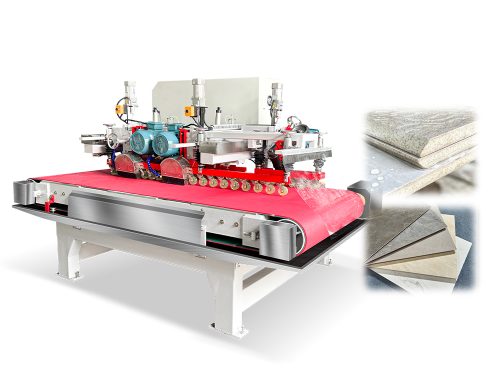

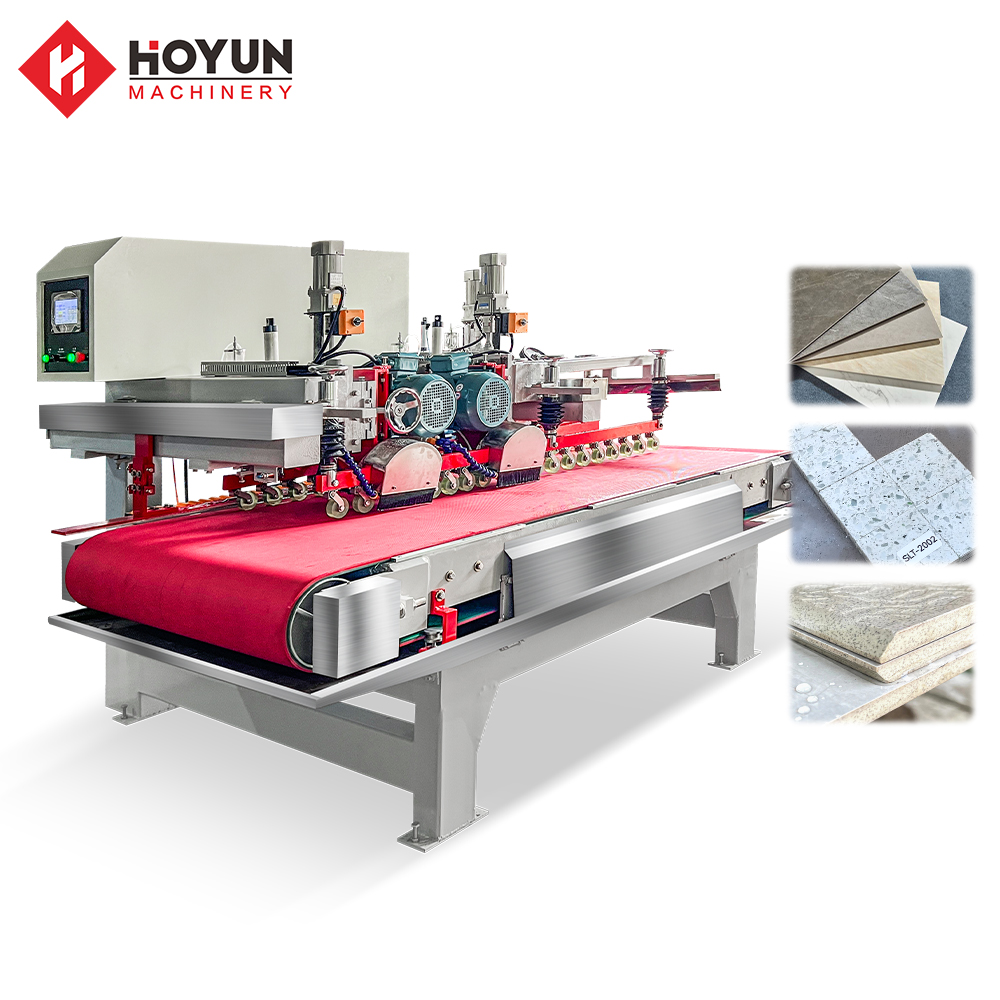

Stone Chamfering Machine Applications
