RTCP (Auto Compensation Function)
The tool tip follows automatically, and the processing speed is one-third faster than that of a 4-axis bridge cutting machine.
Self-developed operating system + remote control
The self-developed operating system is more suitable for the machine and is more convenient and simple to use with the remote control.

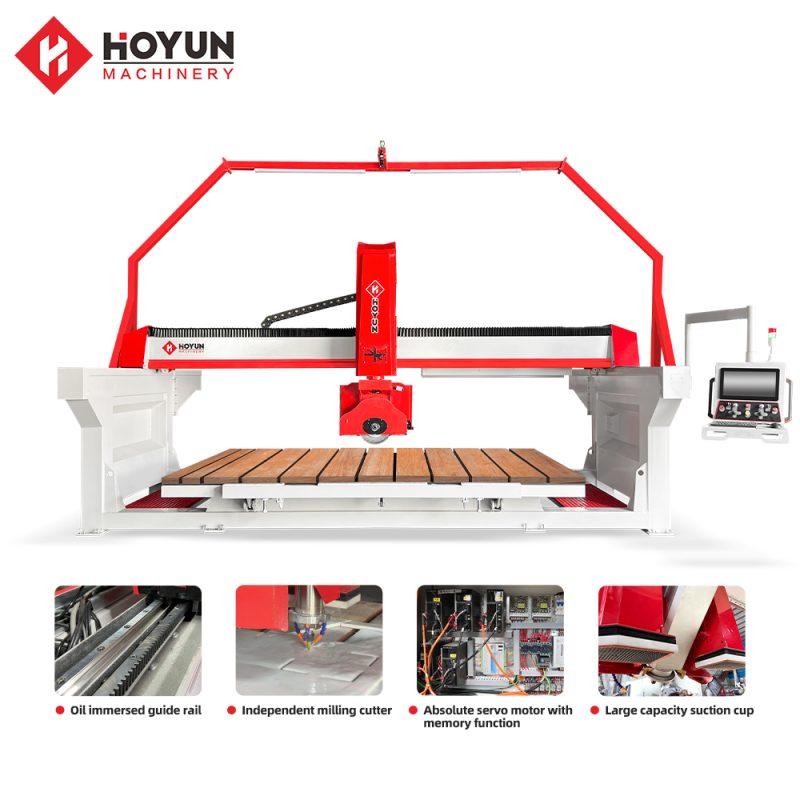

Absolute servo motor with memory function
It has a power-off memory function. When restarting the machine, there is no need to debug the machine again, and there is no need to return to the origin. Processing can continue from the previous position.
Independent milling cutter
The milling cutter function has been added, which is specially used for processing the inner holes of wash basins and can also perform grooving.
3600mm large platform
The larger platform can process larger plates and supports customized platforms of different sizes.
Large capacity suction cup
It has a maximum load-bearing capacity of 200 kg and can automatically move excess material during processing to prevent overcutting.
With ruler
When processing patterned plates, the integrity of the pattern can be main tained.
CNC Bridge Saw Machine Parameters
Processing size |
Motor power |
Processing speed |
Rotating speed |
weight |
|---|---|---|---|---|
| 3200*2000mm | 15kw | 0.5-4.5m/min | 3000rpm | 3800KG |
Blade diameter |
Drilling spindle motor power |
A axis working range |
Total power |
|
| 300-350mm | 5.5kw | 0-90° | 27.5kw | |
| Cutting thickness |
Water Consumption |
C axis working rang |
Machine size |
|
| 30mm | 40L/min | 0-360° | 5200*2800*2200mm |

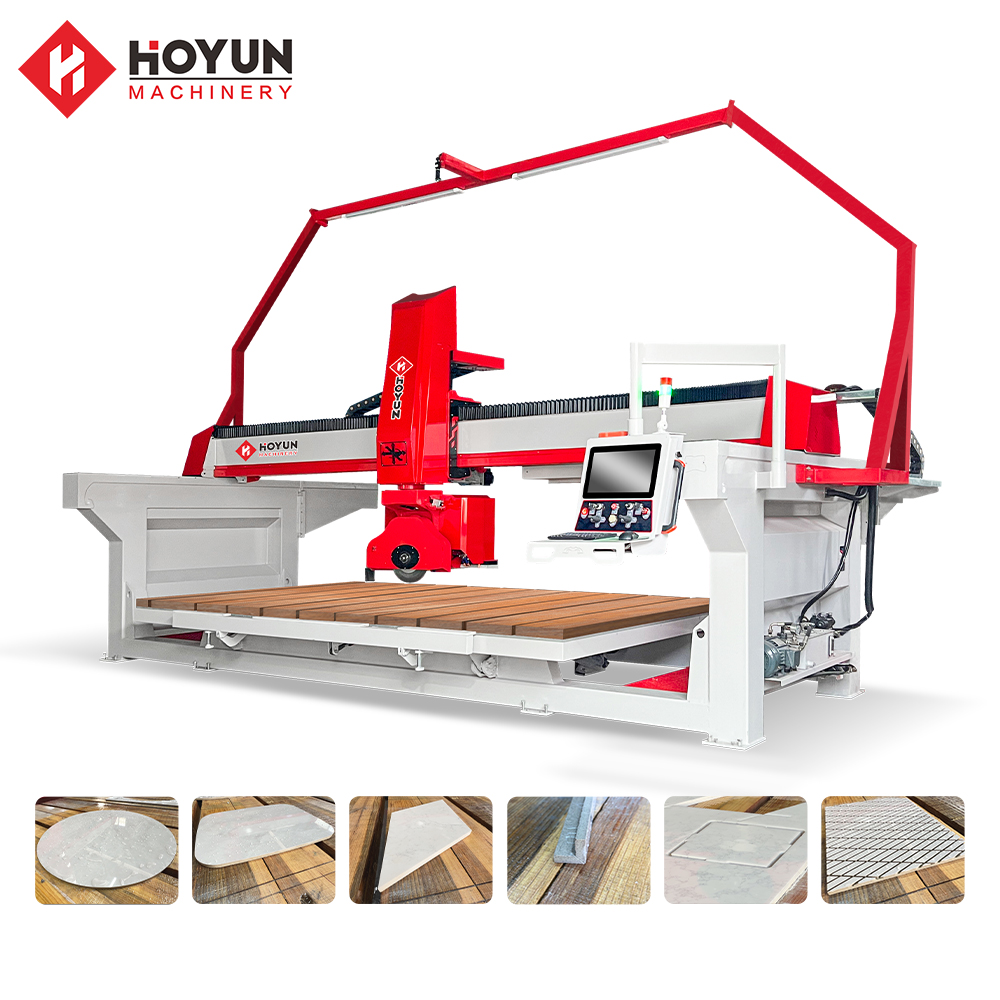

Bridge Cutting Machine Applications
